Hex Metal & Flex Metal Anchors

Hex metal is available in stainless steel and grades T304, T316, T310, T330 as well as all of the standard grades.

We produce the various types of refractory anchors. We can supply you with refractory anchors to suit any depth of lining. Our refractory anchor selection includes studs, V-clips, C-clips, and miscellaneous parts.

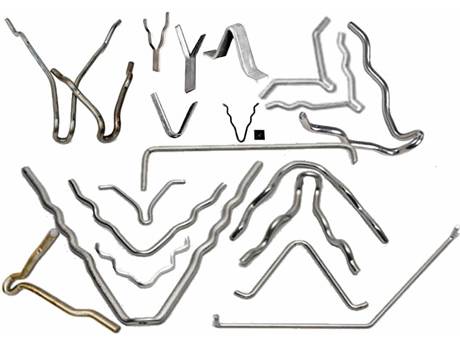

refractory anchors in various shapes

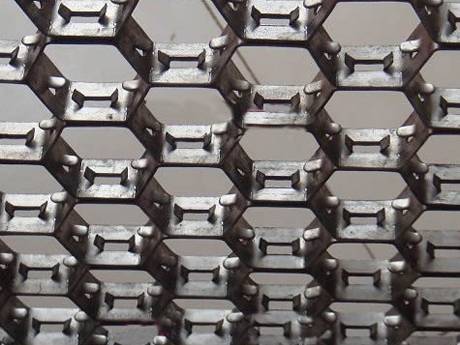

Stainless steel hex metal anchors.
Our refractory anchor products list as follow
Shape Material Refractory Material Temperature Range Prime Use Weld Type

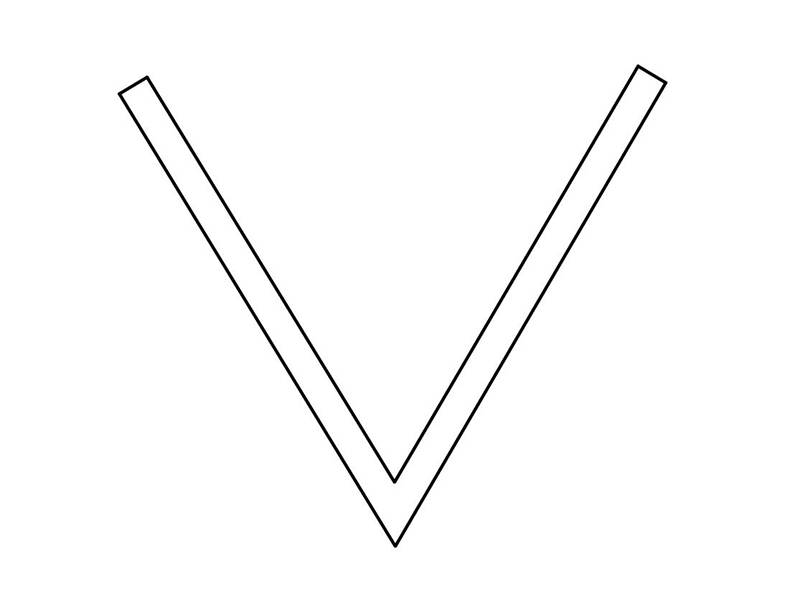

Refractory anchor shape - 1 on the white background.

Refractory anchor shape - 1

 304 S.S.
Mild Steel		 Lightweight Castable Below 1500°F Stacks, Ducts,
Process Heaters		 Hand Weld

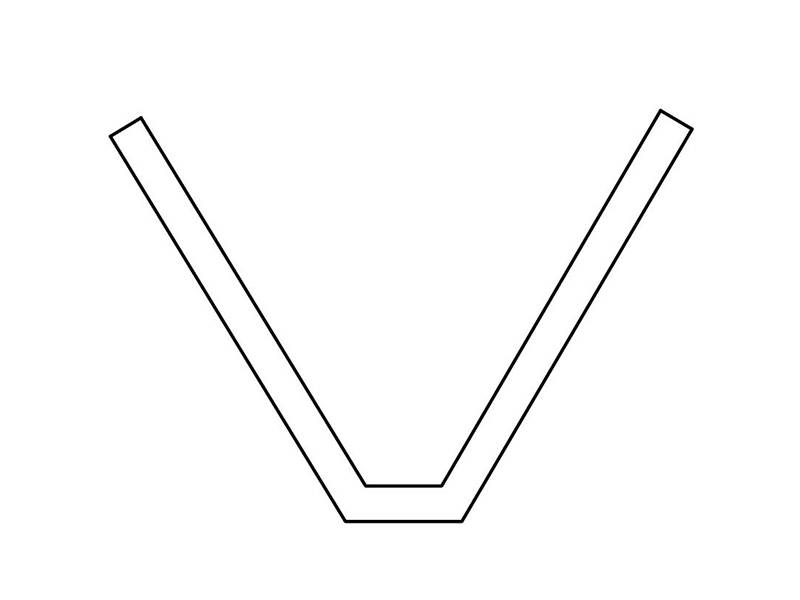

Refractory anchor shape - 2 on the white background.

Refractory anchor shape - 2

 304 S.S.
Mild Steel		 Lightweight Castable Below 1500°F Stacks, Ducts,
Process Heaters		 Hand Weld

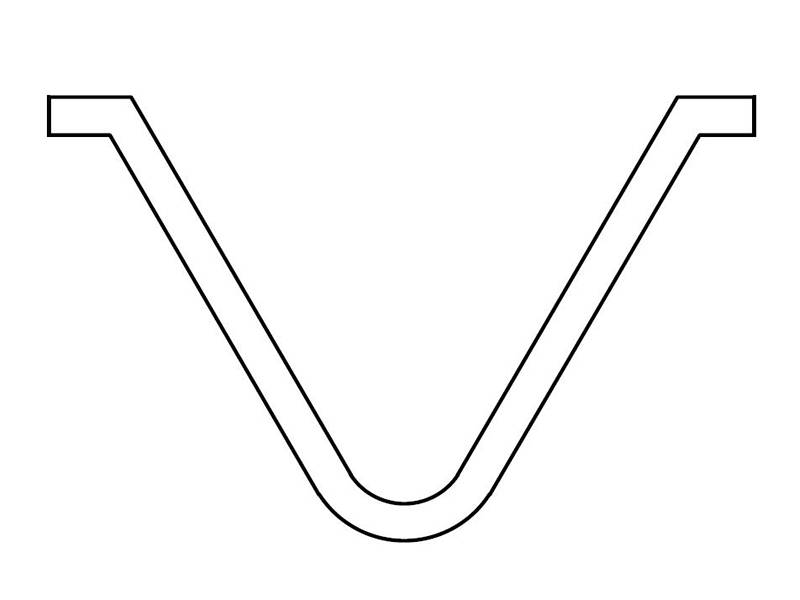

Refractory anchor shape - 3 on the white background.

Refractory anchor shape - 3

 304 S.S.
Mild Steel		 Lightweight Castable Below 1500°F Stacks, Ducts,
Process Heaters		 Hand Weld
Refractory anchor shape - 4 on the white background.

Refractory anchor shape - 4

 304 S.S.
310 S.S.		 Low to Medium
Density
Castable		 Below 1800°F Stacks, Incinerators,
Reformers, Palletizing
Furnaces		 Hand Weld

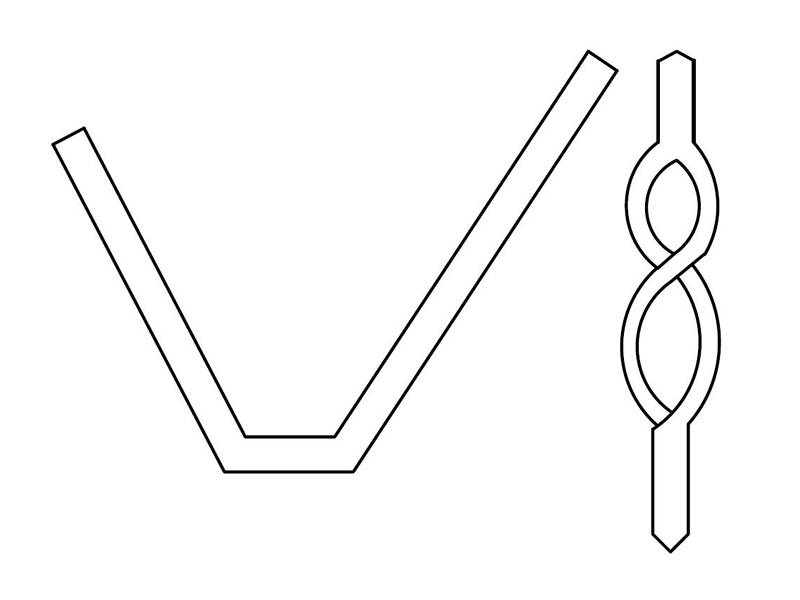

Refractory anchor shape - 5 on the white background.

Refractory anchor shape - 5

 304 S.S.
310 S.S.		 Low to Medium
Density
Castable		 Below 1800°F Stacks, Incinerators,
Reformers, Palletizing
Furnaces		 Hand Weld

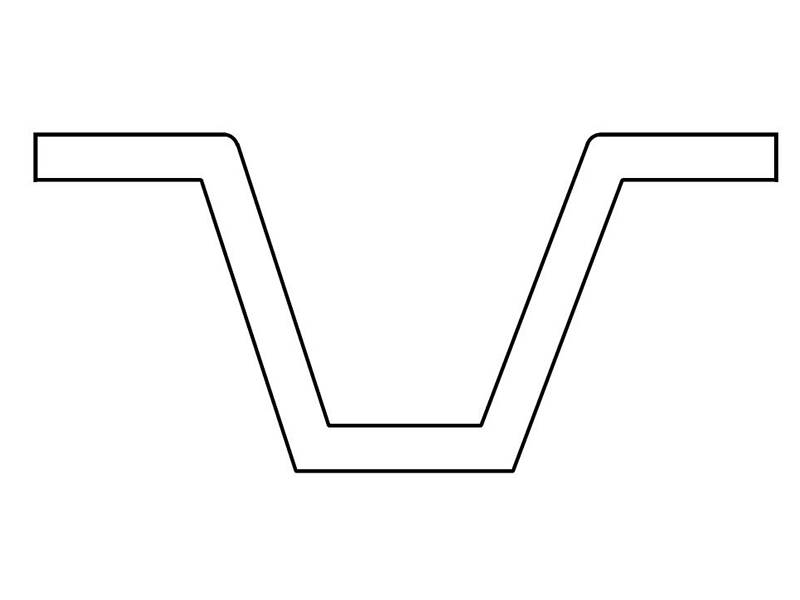

Refractory anchor shape - 6 on the white background.

Refractory anchor shape - 6

 304 S.S.
310 S.S.		 Low to Medium
Density
Castable		 Below 1800°F Stacks, Incinerators,
Reformers, Palletizing
Furnaces		 Hand Weld
Refractory anchor shape - 7 on the white background.

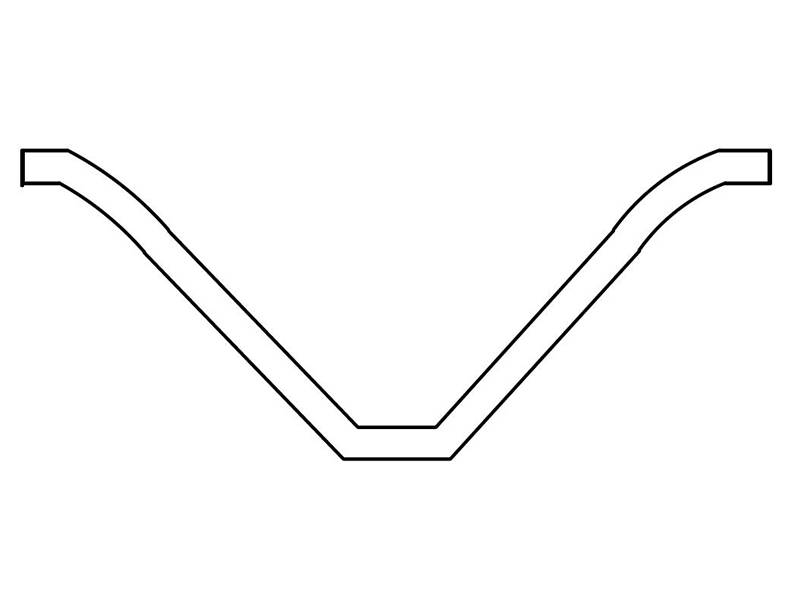

Refractory anchor shape - 7

 304 S.S.
310 S.S.		 Low to Medium
Density
Castable		 Below 1800°F Stacks, Incinerators,
Reformers, Palletizing
Furnaces		 Hand Weld
Refractory anchor shape - 8 on the white background.

Refractory anchor shape - 8

 304 S.S.
310 S.S.		 Low to Medium
Density
Castable		 Below 1800°F Stacks, Incinerators,
Reformers, Palletizing
Furnaces		 Hand Weld
Refractory anchor shape - 9 on the white background.

Refractory anchor shape - 9

 304 S.S.
310 S.S.		 Low to Medium
Density
Castable		 Below 1800°F Stacks, Incinerators,
Reformers, Palletizing
Furnaces		 Hand Weld
Refractory anchor shape - 10 on the white background.

Refractory anchor shape - 10

 304 S.S.
310 S.S.		 Low to Medium
Density
Castable		 Below 1800°F Stacks, Incinerators,
Reformers, Palletizing
Furnaces		 Hand Weld

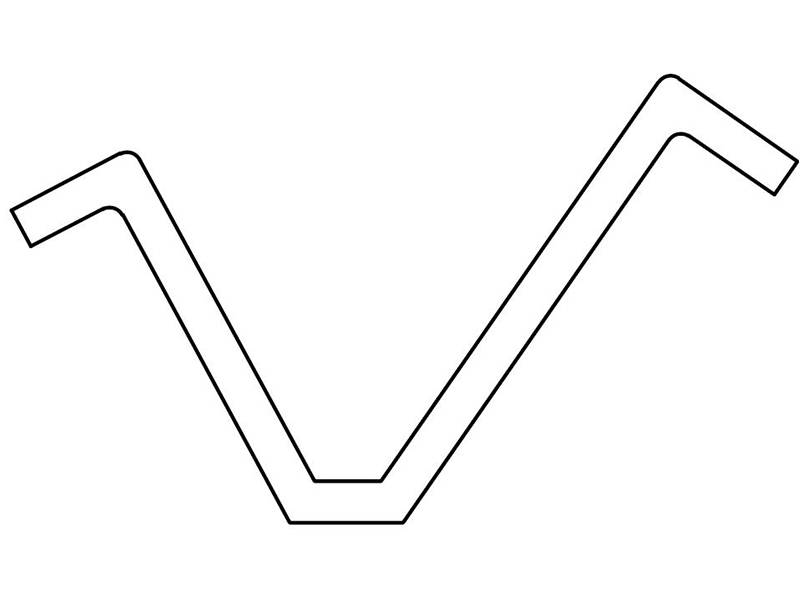

Refractory anchor shape - 11 on the white background.

Refractory anchor shape - 11

 304 S.S.
310 S.S.		 Low to Medium
Density
Castable		 Below 1800°F Stacks, Incinerators,
Reformers, Palletizing
Furnaces		 Hand Weld

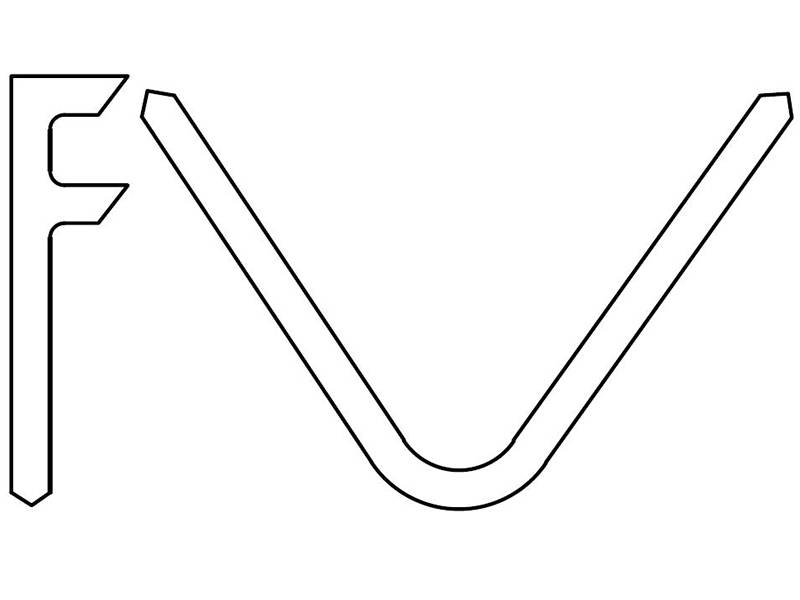

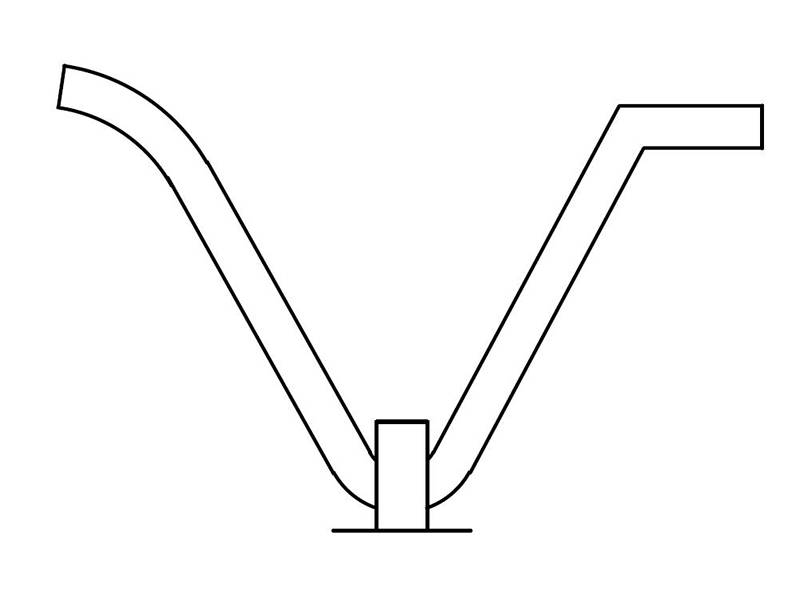

Refractory anchor shape - 12 on the white background.

Refractory anchor shape - 12

 304 S.S.
310 S.S.		 Low to Medium
Density
Castable		 Below 1800°F Stacks, Incinerators,
Reformers, Palletizing
Furnaces		 Hand Weld

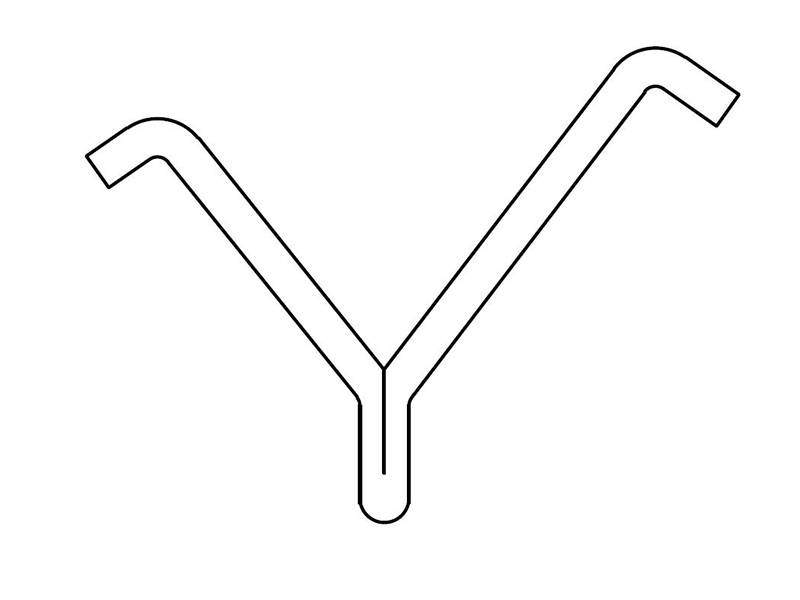

Refractory anchor shape - 13 on the white background.

Refractory anchor shape - 13

 304 S.S.
310 S.S
330 S.S		 Medium to High
Density
Castable		 Over 2000°F Open Hearth Furnaces,
Catalytic Crackers,
Rotary Kilns,
Transfer Lines		 Hand Weld
Refractory anchor shape - 14 on the white background.

Refractory anchor shape - 14

 304 S.S.
310 S.S
330 S.S		 Medium to High
Density
Castable		 Over 2000°F Open Hearth Furnaces,
Catalytic Crackers,
Rotary Kilns,
Transfer Lines		 Hand Weld
Refractory anchor shape - 15 on the white background.

Refractory anchor shape - 15

 304 S.S.
310 S.S
330 S.S		 Medium to High
Density
Castable		 Over 2000°F Open Hearth Furnaces,
Catalytic Crackers,
Rotary Kilns,
Transfer Lines		 Hand Weld
Refractory anchor shape - 16 on the white background.

Refractory anchor shape - 16

 304 S.S.
310 S.S
330 S.S		 Medium to High
Density
Castable		 Over 2000°F Open Hearth Furnaces,
Catalytic Crackers,
Rotary Kilns,
Transfer Lines		 Hand Weld

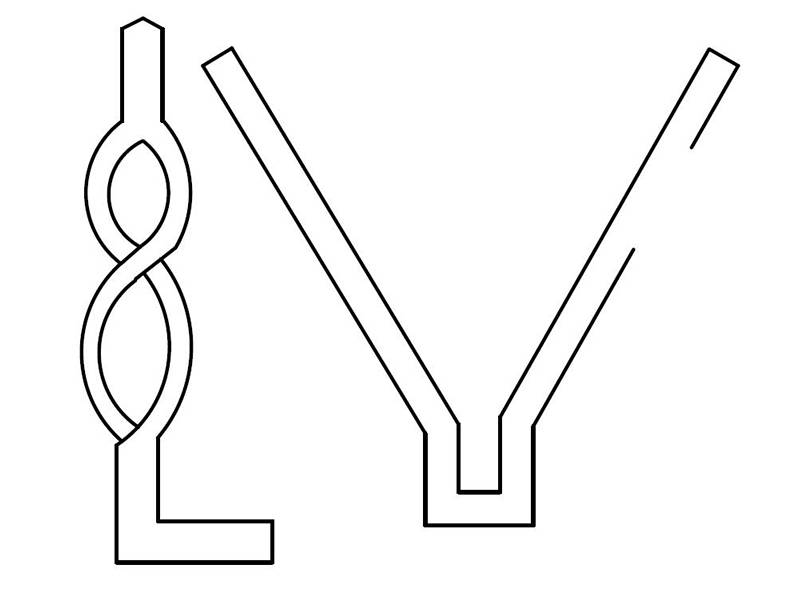

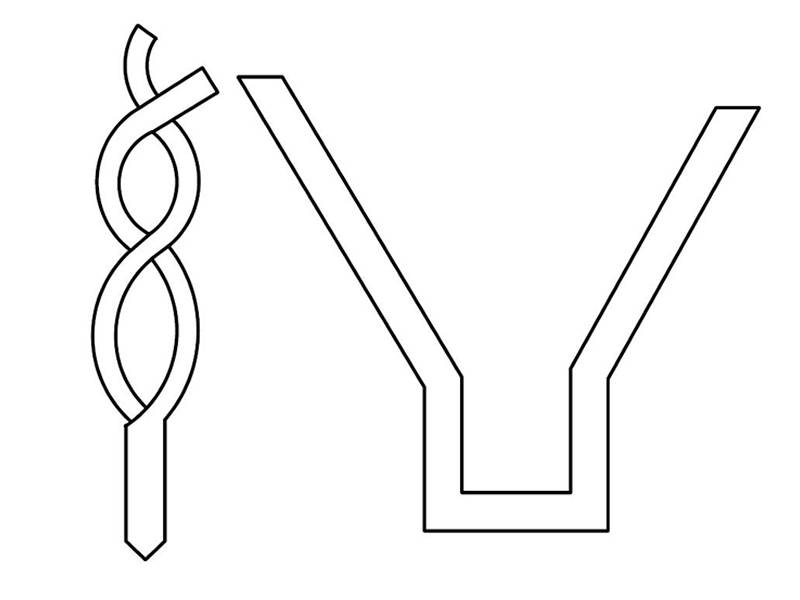

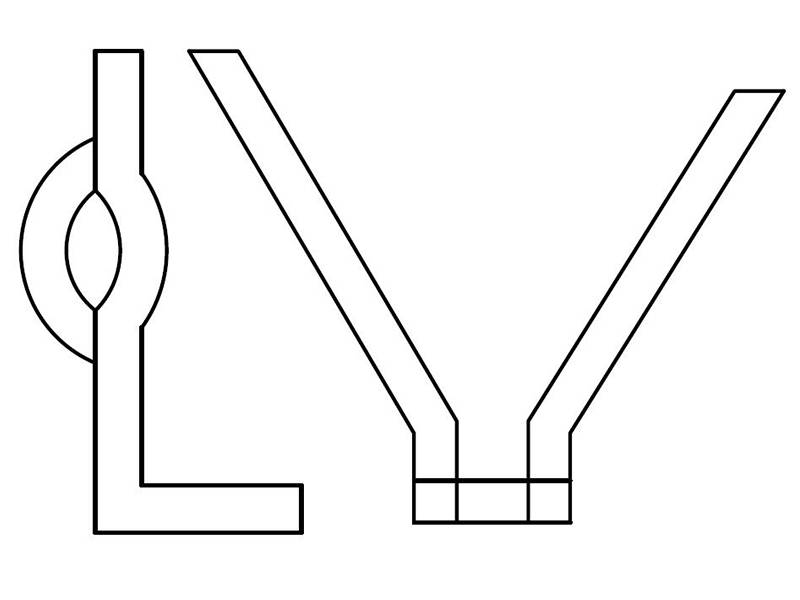

Refractory anchor shape - 17 on the white background.

Refractory anchor shape - 17

 304 S.S.
310 S.S
330 S.S		 Medium to High
Density
Castable		 Over 2000°F Open Hearth Furnaces,
Catalytic Crackers,
Rotary Kilns,
Transfer Lines		 Hand Weld
Refractory anchor shape - 18 on the white background.

Refractory anchor shape - 18

 304 S.S.
310 S.S
330 S.S		 Medium to High
Density
Castable		 Over 2000°F Open Hearth Furnaces,
Catalytic Crackers,
Rotary Kilns,
Transfer Lines		 Hand Weld
Refractory anchor shape - 19 on the white background.

Refractory anchor shape - 19

 304 S.S.
310 S.S
330 S.S		 Medium to High
Density
Castable		 Over 2000°F Open Hearth Furnaces,
Catalytic Crackers,
Rotary Kilns,
Transfer Lines		 Hand Weld

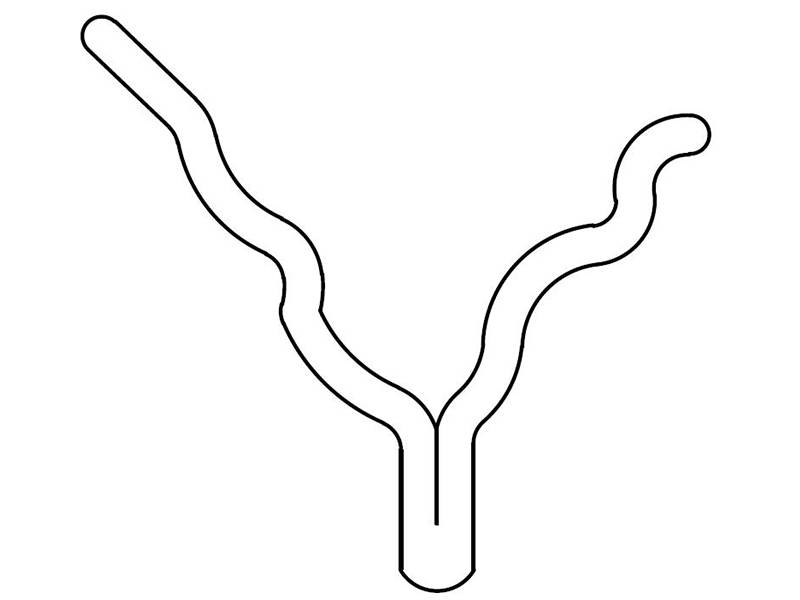

Refractory anchor shape - 20 on the white background.

Refractory anchor shape - 20

 304 S.S.
310 S.S
330 S.S		 Medium to High
Density
Castable		 Over 2000°F Open Hearth Furnaces,
Catalytic Crackers,
Rotary Kilns,
Transfer Lines		 Hand Weld
Refractory anchor shape - 21 on the white background.

Refractory anchor shape - 21

 304 S.S.
310 S.S
330 S.S		 Medium to High
Density
Castable		 Over 2000°F Open Hearth Furnaces,
Catalytic Crackers,
Rotary Kilns,
Transfer Lines		 Hand Weld
Refractory anchor shape - 22 on the white background.

Refractory anchor shape - 22

 304 S.S.
310 S.S.
316 S.S.
330 S.S.
601 Inconel		 High Density Castable
(Dual Component Linings)		 Over 2000°F Rotary Kilns,
Furnace Arches, Furnace Roofs,
Reactor Bottoms		 Hand Weld
Refractory anchor shape - 23 on the white background.

Refractory anchor shape - 23

 304 S.S.
310 S.S.
316 S.S.
330 S.S.
601 Inconel		 High Density Castable
(Dual Component Linings)		 Over 2000°F Rotary Kilns,
Furnace Arches, Furnace Roofs,
Reactor Bottoms		 Hand Weld
Refractory anchor shape - 24 on the white background.

Refractory anchor shape - 24

 304 S.S.
310 S.S.
316 S.S.
330 S.S.
601 Inconel		 High Density Castable
(Dual Component Linings)		 Over 2000°F Rotary Kilns,
Furnace Arches, Furnace Roofs,
Reactor Bottoms		 Hand Weld
Refractory anchor shape - 25 on the white background.

Refractory anchor shape - 25

 304 S.S.
310 S.S.
316 S.S.
330 S.S.
601 Inconel		 High Density Castable
(Dual Component Linings)		 Over 2000°F Rotary Kilns,
Furnace Arches, Furnace Roofs,
Reactor Bottoms		 Hand Weld

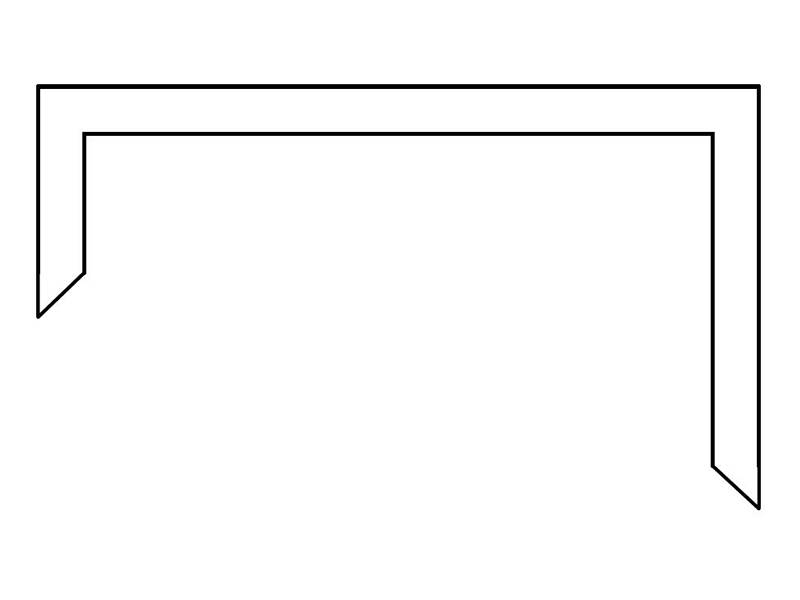

Refractory anchor shape - 26 on the white background.

Refractory anchor shape - 26

 304 S.S.
310 S.S.
316 S.S.
330 S.S.
601 Inconel		 High Density Castable
(Dual Component Linings)		 Over 2000°F Rotary Kilns,
Furnace Arches, Furnace Roofs,
Reactor Bottoms		 Hand Weld

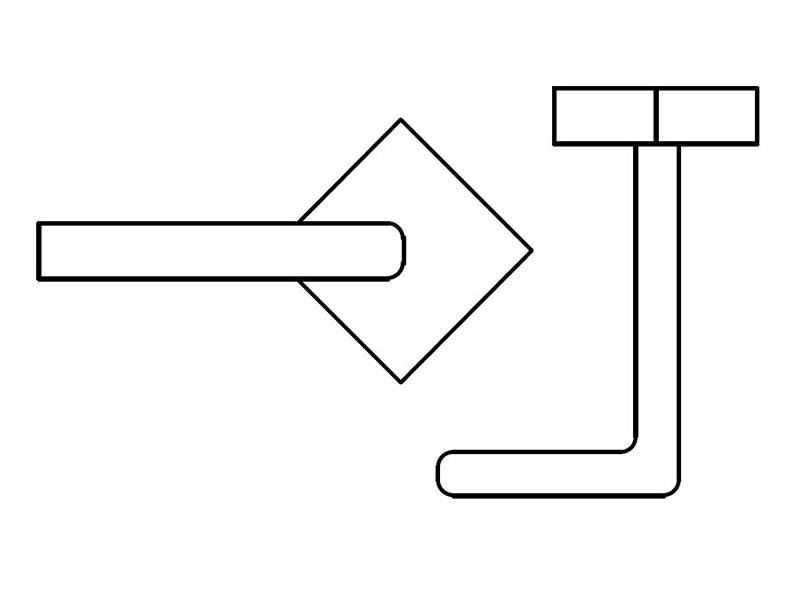

Refractory anchor shape - 27 on the white background.

Refractory anchor shape - 27

 304 S.S.
310 S.S.
316 S.S.
330 S.S.
601 Inconel		 High Density Castable
(Dual Component Linings)		 Over 2000°F Rotary Kilns,
Furnace Arches, Furnace Roofs,
Reactor Bottoms		 Hand Weld

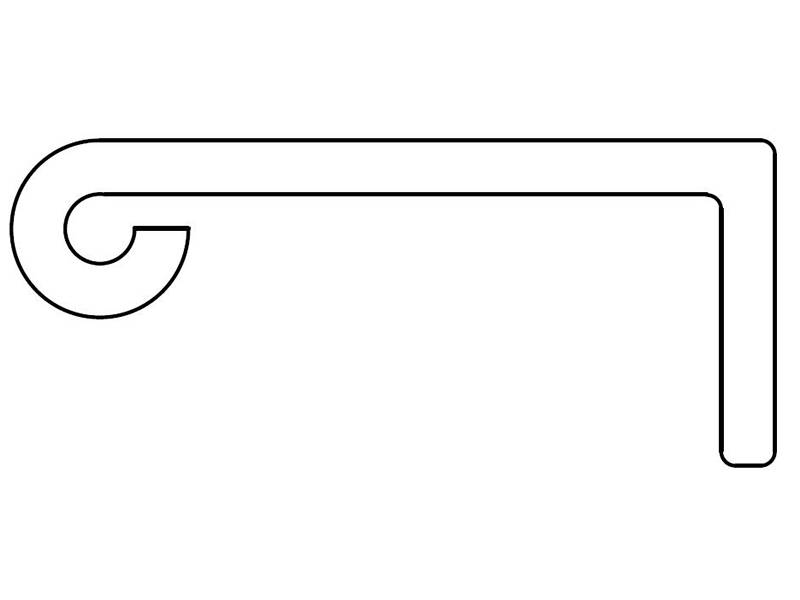

Refractory anchor shape - 28 on the white background.

Refractory anchor shape - 28

 304 S.S.
310 S.S.
316 S.S.
330 S.S.
601 Inconel		 High Density Castable
(Dual Component Linings)		 Over 2000°F Rotary Kilns,
Furnace Arches, Furnace Roofs,
Reactor Bottoms		 Hand Weld

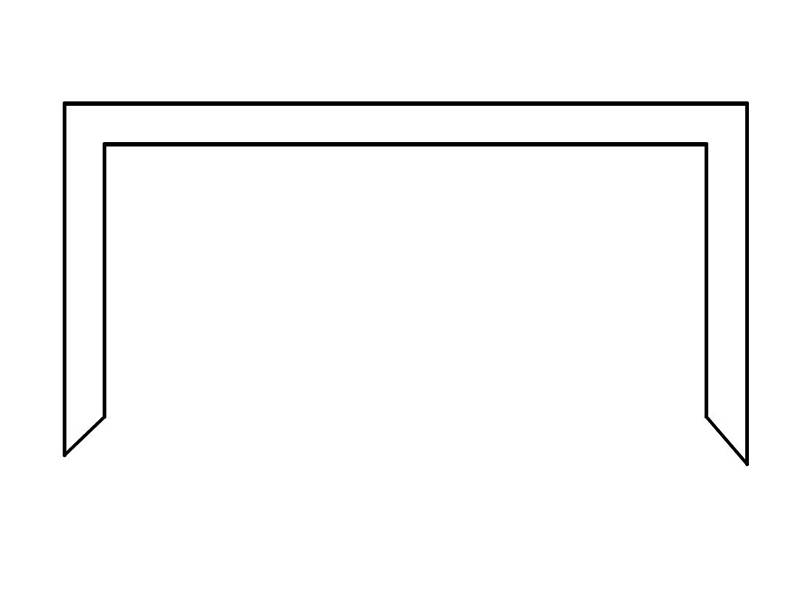

Refractory anchor shape - 29 on the white background.

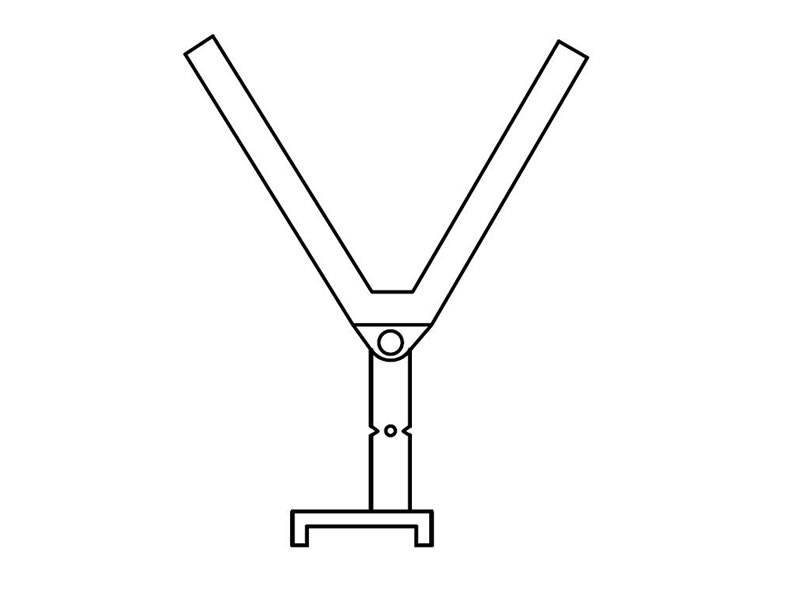

Refractory anchor shape - 29

 304 S.S.
310 S.S.
316 S.S.
330 S.S.
601 Inconel		 High Density Castable
(Dual Component Linings)		 Over 2000°F Rotary Kilns,
Furnace Arches, Furnace Roofs,
Reactor Bottoms		 Hand Weld

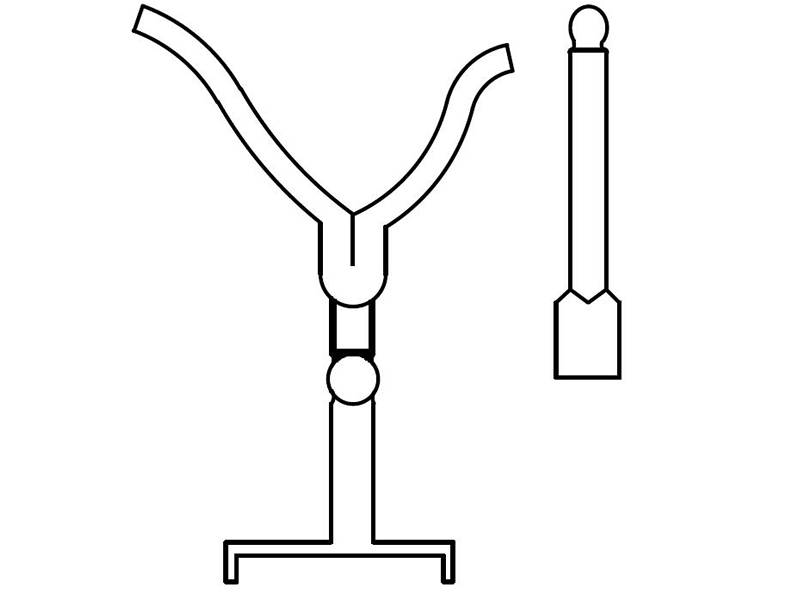

Refractory anchor shape - 30 on the white background.

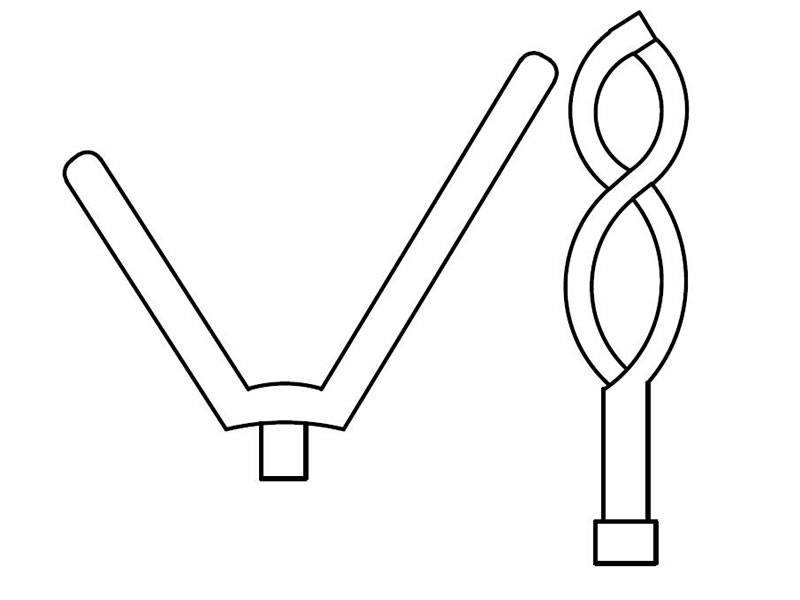

Refractory anchor shape - 30

 304 S.S.
310 S.S.
316 S.S.
330 S.S.
601 Inconel		 High Density Castable
(Dual Component Linings)		 High Density Castable (Dual Component Linings) Rotary Kilns,
Furnace Arches, Furnace Roofs,
Reactor Bottoms		 Hand Weld

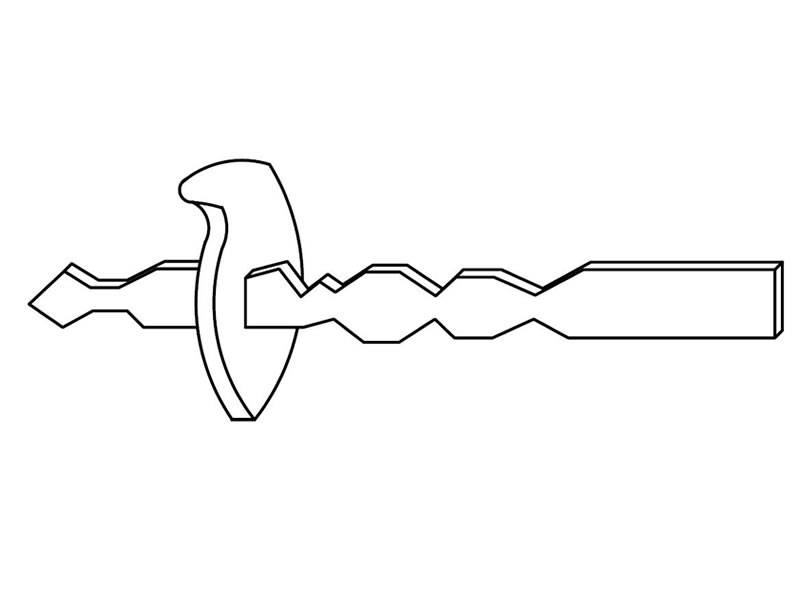

Refractory anchor shape - 31 on the white background.

Refractory anchor shape - 31

 304 S.S.
310 S.S.
601 Inconel		 Fibre Blanket,
Fibre Modules		 900° to 2250°F Heat Treat Furnaces,
Car Bottom Furnaces,
Rotary Hearth		 Stud Weld

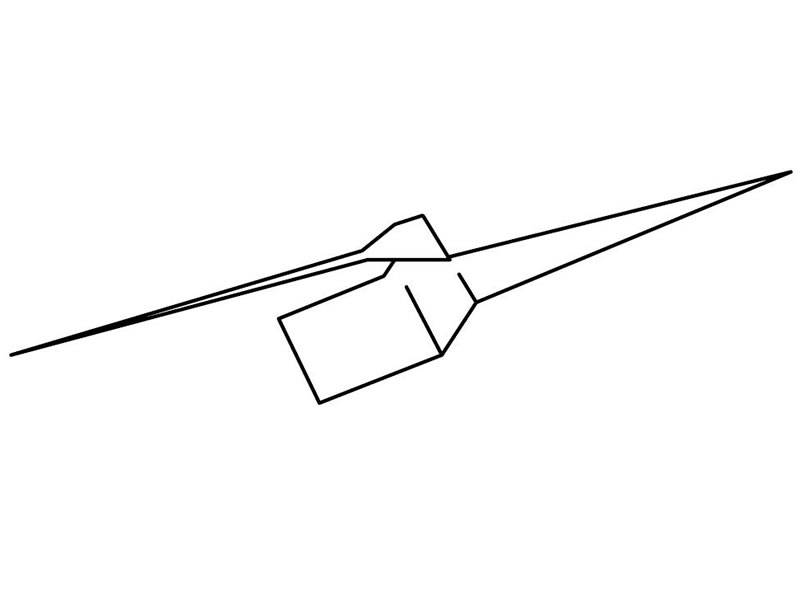

Refractory anchor shape - 32 on the white background.

Refractory anchor shape - 32

 304 S.S.
310 S.S.
601 Inconel		 Fibre Blanket,
Fibre Modules		 900° to 2250°F Heat Treat Furnaces,
Car Bottom Furnaces,
Rotary Hearth		 Stud Weld
Refractory anchor shape - 33 on the white background.

Refractory anchor shape - 33

 Ceramic Fibre Blanket,
Fibre Modules		 900° to 2250°F Heat Treat Furnaces,

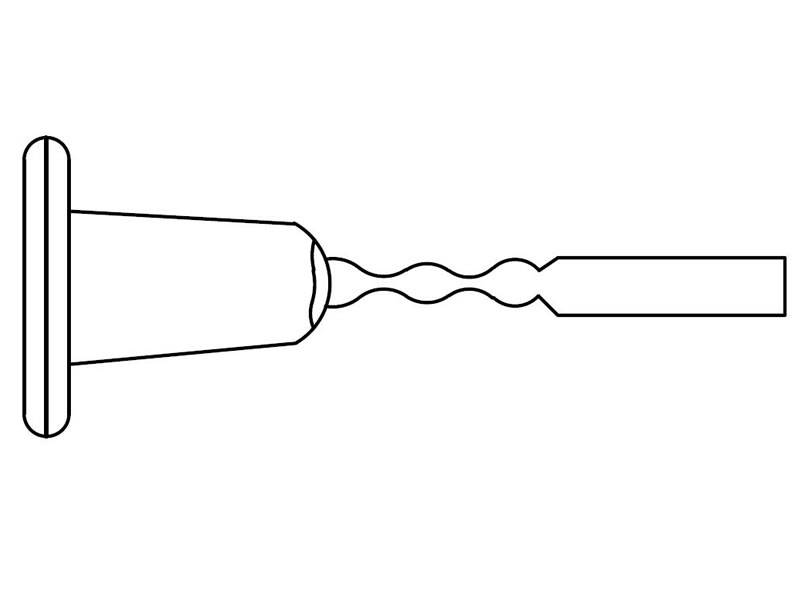

Car Bottom Furnaces,
Rotary Hearth		 N/A
Refractory anchor shape - 34 on the white background.

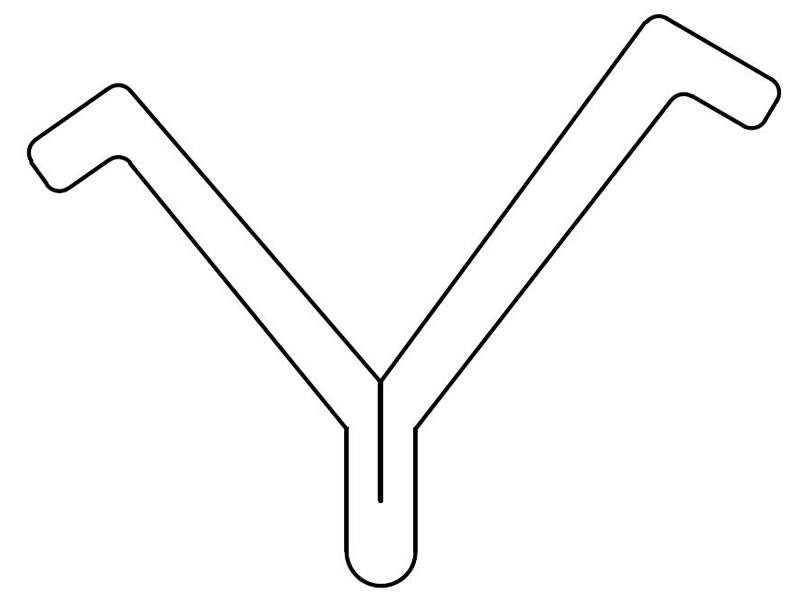

Refractory anchor shape - 34

 304 S.S.
310 S.S.		 Low to High Density Castable 1200° to 2000°F Open Hearth Furnaces,
Catalytic Crackers,
Rotary Kilns,
Stacks, Incinerators		 Stud Weld
Refractory anchor shape - 35 on the white background.

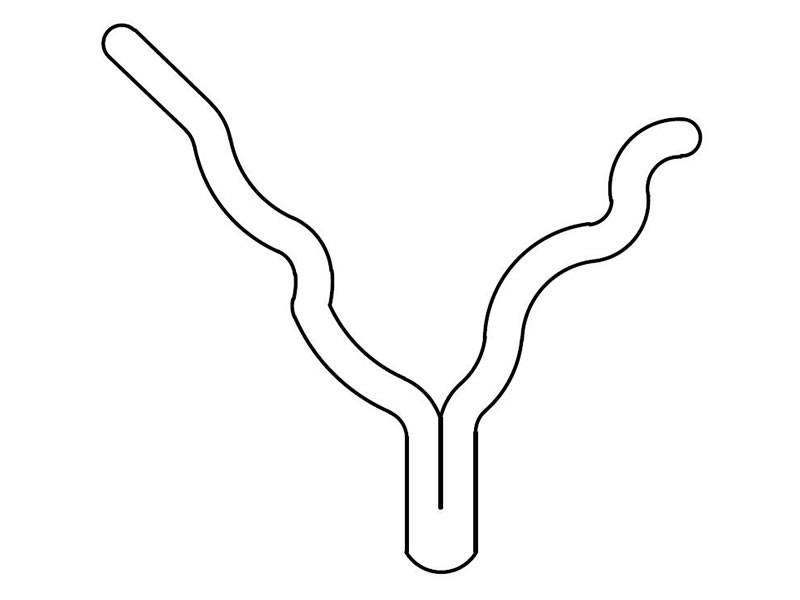

Refractory anchor shape - 35

 304 S.S.
310 S.S.		 Low to High Density Castable 1200° to 2000°F Open Hearth Furnaces,
Catalytic Crackers,
Rotary Kilns,
Stacks, Incinerators		 Stud Weld
Refractory anchor shape - 36 on the white background.

Refractory anchor shape - 36

 304 S.S.
310 S.S.		 Low to High Density Castable 1200° to 2000°F Open Hearth Furnaces,
Catalytic Crackers,
Rotary Kilns,
Stacks, Incinerators		 Stud Weld

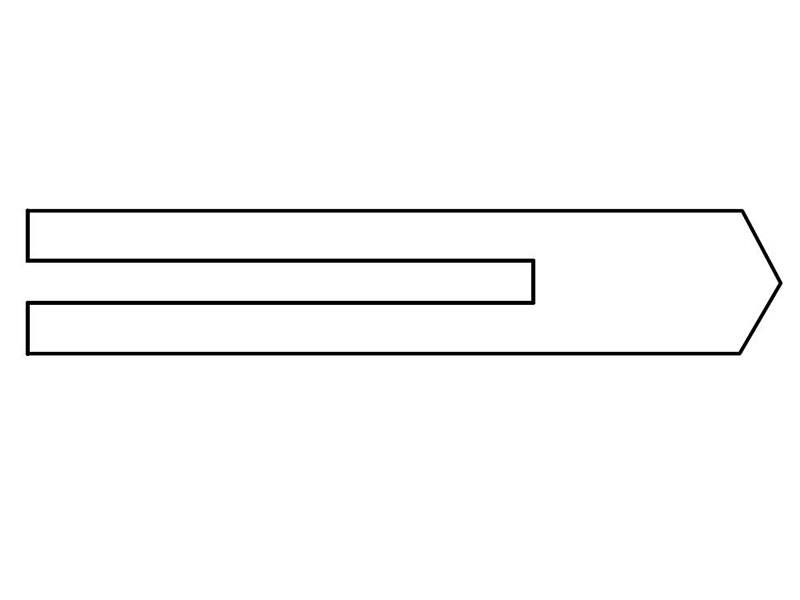

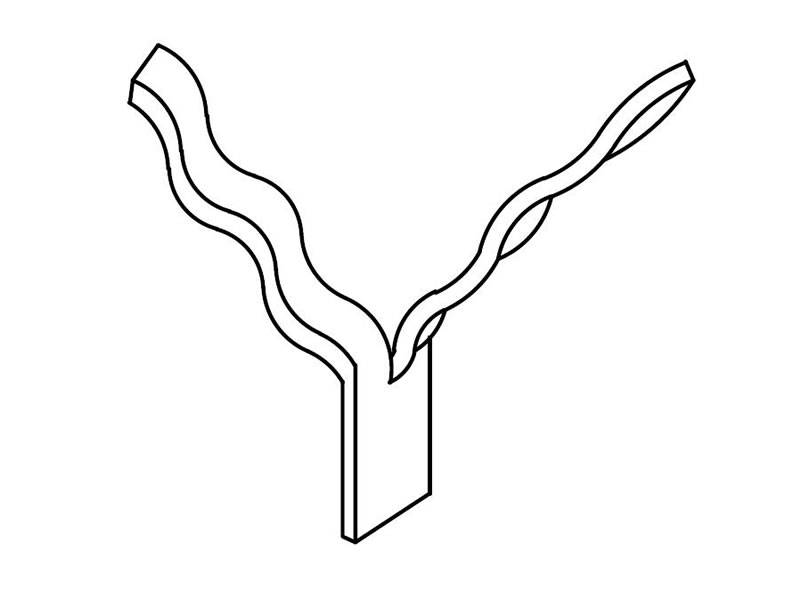

Refractory anchor shape - 37 on the white background.

Refractory anchor shape - 37

 304 S.S.
310 S.S.		 Low to High Density Castable 1200° to 2000°F Open Hearth Furnaces,
Catalytic Crackers,
Rotary Kilns,
Stacks, Incinerators		 Stud Weld
Refractory anchor shape - 38 on the white background.

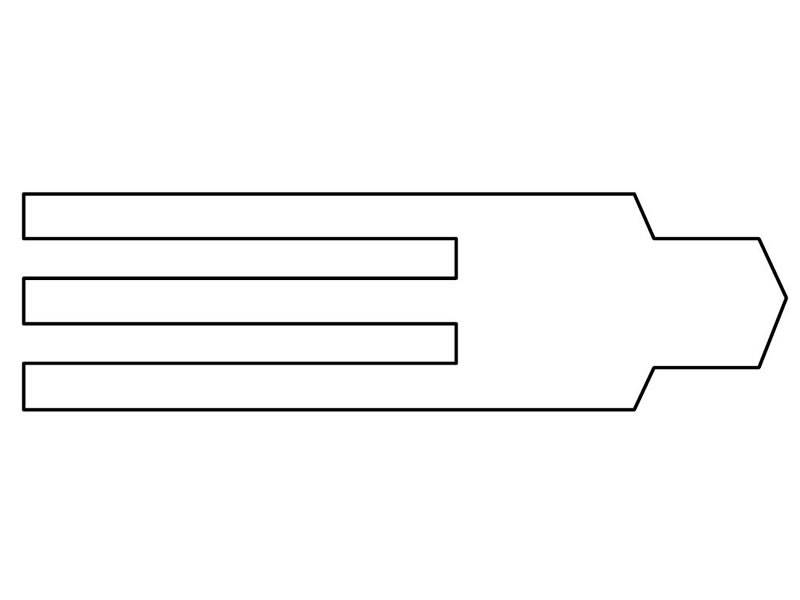

Refractory anchor shape - 38

 304 S.S.
310 S.S.		 Low to High Density Castable 1200° to 2000°F Open Hearth Furnaces,
Catalytic Crackers,
Rotary Kilns,
Stacks, Incinerators		 Stud Weld
Refractory anchor shape - 39 on the white background.

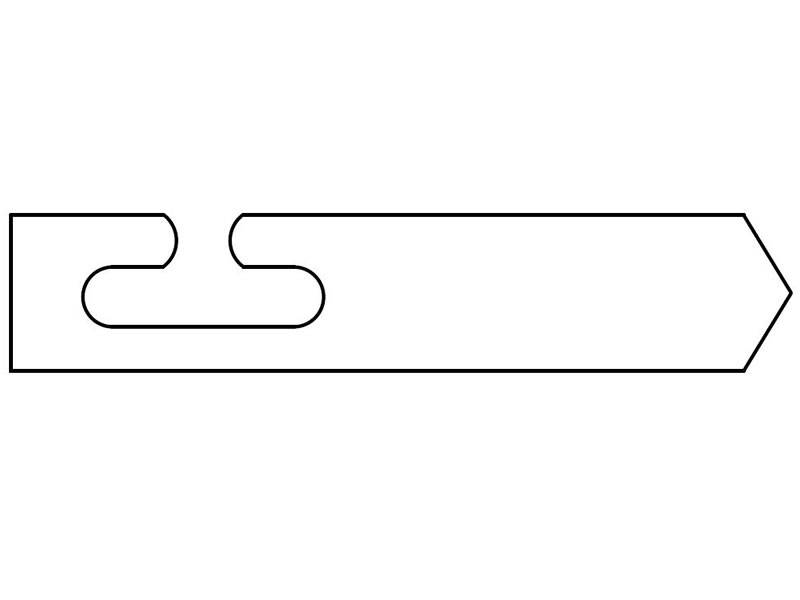

Refractory anchor shape - 39

 304 S.S.
310 S.S.		 Low to High Density Castable 1200° to 2000°F Open Hearth Furnaces,
Catalytic Crackers,
Rotary Kilns,
Stacks, Incinerators		 Stud Weld

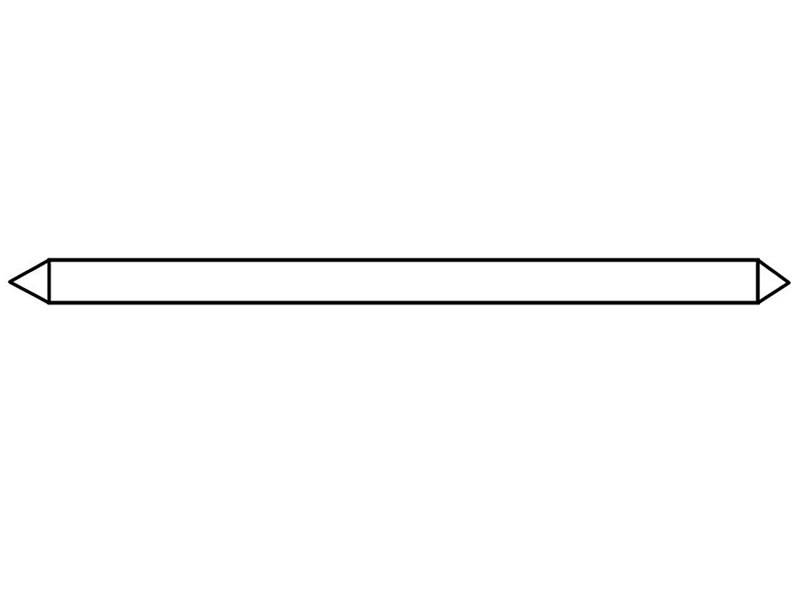

Refractory anchor shape - 40 on the white background.

Refractory anchor shape - 40

 304 S.S.
310 S.S.
Mild Steel		 Low to High Density Castable 600° to 1200°F Stacks Heat Treating Stud Weld
Refractory anchor shape - 41 on the white background.

Refractory anchor shape - 41

 304 S.S.
310 S.S.
Mild Steel		 Low to High Density Castable 600° to 1200°F Stacks Heat Treating Stud Weld
